300 Series STURDY FOOT TM Support
A Better Foundation for Mini-Split Equipment

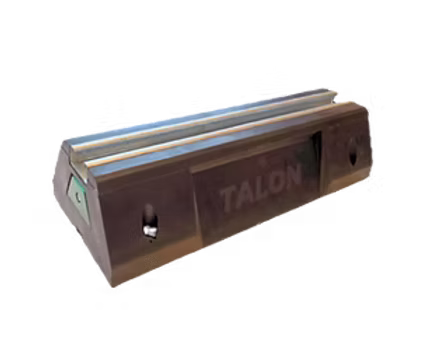

Talon Sturdy Foot support blocks provide a strong, stable alternative to traditional plastic heat pump risers that can crack over time and leave expensive equipment inadequately supported.
Manufactured from durable vulcanized rubber, Sturdy Foot provides a stable equipment base while also helping dampen vibration. A built-in hand hold makes the blocks easier to transport and position during installation.
T310V
T316V-KIT
Features
- Vulcanized Recycled Rubber
- Suitable for most Rooftop Material*
- UV Resistant
- Noise/Vibration Dampening
- Highly Resistant to Freeze/Thaw
- Indented hand hold design/easy
transportation - Reflector for hi visibility (optional for kits)
- Kits include hardware for mounting to mini split units
Built for the Equipment It Supports
- High load capacity
- Durable vulcanized rubber construction
- Vibration-dampening properties
- Built-in hand hold
- Stable alternative to plastic risers
- Designed for mini-split and HVAC equipment applications
- Kits include hardware for mounting to mini split units.
- pre drilled holes for attaching bolts to concrete pads
Independent Lab Testing
- Ozone Exposure ASTM D1149-18
- Heat Aging ASTM D573-2019
- Hardness (Durometer Shore A)
ASTM D2240-2021 - Compressive Strength ASTMD395-2018
- Tensile Testing ASTM D412-2016
Models
Click a model below for specifications
- Strut Length: 10″
- Block Length: 10″
- Height: 4″
- Width: 6″
- Load Capacity**: 1500 lbs
- Weight: 5.8 lbs
- Strut Length: 16″
- Block Length: 16″
- Height: 4″
- Width: 6″
- Load Capacity**: 1500 lbs
- Weight: 7.87 lbs
- Strut Length: 18″
- Block Length: 18″
- Height: 4″
- Width: 6″
- Strut Length: 22.5″
- Block Length: 23.5″
- Height: 4″
- Width: 6″
- Load Capacity**: 2000 lbs
- Weight: 11.12 lbs
- Strut Length: 28.5″
- Block Length: 29.5″
- Height: 4″
- Width: 6″
- Strut Length: 38.5″
- Block Length: 39.5″
- Height: 4″
- Width: 6″
- Strut Length: 16″
- Block Length: 16″
- Height: 4″
- Width: 6″
- Load Capacity**: 3000 lbs
- Weight: 17 lbs
Kit Contains (2) T316V and Mounting Hardware
- Strut Length: 18″
- Block Length: 18″
- Height: 4″
- Width: 6″
Kit Contains (2) T318V and Mounting Hardware
- Strut Length: 22.5″
- Block Length: 23.5″
- Height: 4″
- Width: 6″
- Load Capacity**: 4000 lbs
- Weight: 23 lbs
Kit Contains (2) T318V and Mounting Hardware
*Consult roofing material manufacturer for compatability.
**Uniform block load capacity only. Always consult engineer for substrate load capacity. Mounting holes not rated to hold load capacity.
