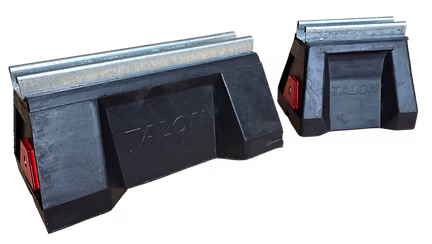

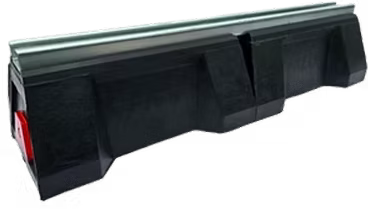

Standard V-Series Rooftop Block Series
OVERVIEW
Improved Vulcanized rubber pipe support solutions tailored for the HVAC, electrical, plumbing, and solar industries.
T210V-813
T205V-813
T220V-813
T230V-813
Features
- Vulcanized Recycled Rubber
- Suitable for most Rooftop Material*
- UV Resistant
- Noise/Vibration Dampening
- Highly Resistant to Freeze/Thaw
- Reflector for High Visibility
- Indented hand hold design/easy
transport
Finishes
- Pre-Galvinized Steel Strut
- Other special order finishes available
Applications
- Solar Racking
- HVAC Ducting
- HVAC System Support
- Pipe/Conduit Support
- Cable Tray Systems
- Roof Walkway Systems
- Data centers
Independent Lab Testing
- Ozone Exposure ASTM D1149-18
- Heat Aging ASTM D573-2019
- Hardness (Durometer Shore A)
ASTM D2240-2021 - Compressive Strength ASTMD395-2018
- Tensile Testing ASTM D412-2016
Models
Click a model below for specifications
- Block Length: 6″
- Block Height: 4 5/16″
- Width: 5″
- Load Capacity**: 400 lbs
- Weight: 2.26 lbs
- Strut Length: 5″
- Strut Height: 13/16″
- Block Length: 6″
- Block Height: 5″
- Width: 5″
- Load Capacity**: 400 lbs
- Weight: 2.69 lbs
- Strut Length: 5″
- Strut Height: 1 5/8″
- Block Length: 6″
- Block Height: 5 5/8″
- Width: 5″
- Load Capacity**: 400 lbs
- Weight: 3.10 lbs
- Block Length: 10 1/2″
- Block Height: 4 5/16″
- Width: 5″
- Load Capacity**: 1500 lbs
- Weight: 3.56 lbs
- Strut Length: 9 11/16″
- Strut Height: 13/16″
- Block Length: 10 1/2″
- Block Height: 5″
- Width: 5″
- Load Capacity**: 1500 lbs
- Weight: 4.87 lbs
- Strut Length: 9 11/16″
- Strut Height: 2 7/16″
- Block Length: 10 1/2″
- Block Height: 6 13/16″
- Width: 5″
- Load Capacity**: 1500 lbs
- Strut Length: 20 1/4′
- Strut Height: 13/16″
- Block Length: 21 1/4″
- Block Height: 5″
- Width: 5″
- Load Capacity**: 3000 lbs
- Weight: 9.19 lbs
- Strut Length: 30.5′
- Strut Height: 13/16″
- Block Length: 31 1/2″
- Block Height: 5″
- Width: 5″
- Load Capacity**: 4500 lbs
- Weight: 14.63 lbs
*Consult roofing material manufacturer for compatability.
**Uniform block load capacity only. Always consult engineer
